Buy Heavy Duty UTV Axles: 2026 Buyer's Review

Table of Contents

• Why Buy Heavy Duty UTV Axles: What Actually Breaks
• Quick Comparison: Heavy Duty UTV Axles at a Glance
• UTV Axle Fitment by Make and Model
• Best UTV Axles for Lifted Machines
• UTV Axle Warranty and Materials: What You're Paying For
• UTV CV Axle Replacement: Signs, Symptoms, and Install
• Which Axle Should You Pick?
• Conclusion
• Frequently Asked Questions

Last Updated: October 19, 2026

Why Buy Heavy Duty UTV Axles: What Actually Breaks

If you are shopping to buy heavy duty UTV axles, the first thing to understand is what fails on the stock parts. The OEM axle shaft survives, but the CV joint is where the damage shows up. Oversized tires, a lift kit, and a heavy right foot put torque through a joint that was sized for a milder machine.

The typical failure chain looks like this:

• Torn CV boot lets grit and water into the joint
• Contaminated grease turns abrasive, and the cage and race wear
• Heat builds in the joint under load, and the metal fatigues
• The cage cracks or the shaft splines strip, usually far from the trailer

A stock axle is built to a cost target. A heavy duty UTV axle uses stronger shaft material and a reinforced joint so the same torque has somewhere to go. That is the whole argument for upgrading, and it is a good one.

Quick Comparison: Heavy Duty UTV Axles at a Glance

Here is how our Demon Xtreme range lines up. Every axle below is a direct-fit replacement built to OEM specifications or better, and each one is trail-tested for hard use.

The short version: 4340 chromoly handles most riders. Step up to 300M when you run big power or big tires.

UTV Axle Fitment by Make and Model

UTV axle fitment by make and model is the step buyers skip, and it is the one that causes returns. Polaris alone splits the RZR family into XP 1000, XP 4 1000, PRO XP, Turbo R, and General, and the axle lengths differ between them.

Our fitment covers the common cases:

• RZR XP 1000 and XP 4 1000 (2014-2023): includes Sport, Premium, Limited Edition, High Lifter, Trails and Rock, and DYNAMIX trims
• RZR PRO XP and PRO XP 4 (2020-2025): Sport, Premium, and Ultimate trims
• RZR Turbo R and Turbo R 4 (2022-2024): all trims
• Can-Am Maverick X3 and X3 Max (2018-2025): rear left and rear right fitments

Check your model year, sub-model, and whether the axle is front or rear before ordering. If you already run a long travel kit, tell us which one. We build extended lengths for major long travel and lift kits, and we can pair axles with 30 spline diffs where needed.

Best UTV Axles for Lifted Machines

Lifted machines are where stock axles fail fastest, because a lift changes the angle the CV joint runs at. The best UTV axles for lifted machines are built longer and with a joint that tolerates that angle without binding at full droop.

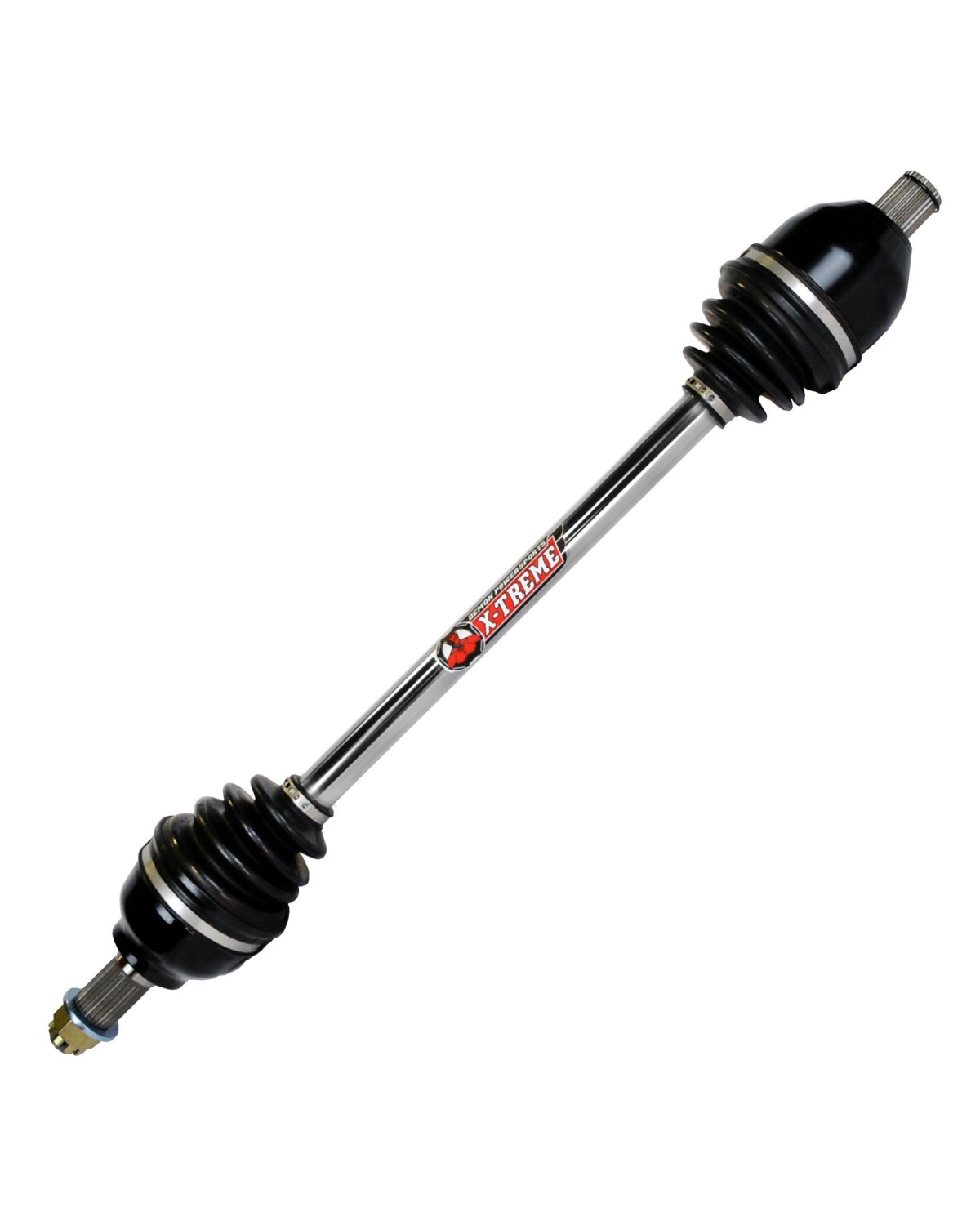

Our long travel options are made for exactly this. The Polaris RZR PRO XP Demon Xtreme Heavy Duty Long Travel Axle Race Spec 4340 is available in extended lengths for major long travel suspension kits and lift kits, and it uses a 300M shaft designed to flex and absorb force rather than snap. Both the inner and outer CV joints, including the race and cage, are 4340 chromoly, which is more elastic and takes load off the differential.

The result is a driveline that survives oversized tires and heavy lifting instead of becoming the weak link. If your machine is lifted, do not fit a stock-length axle and hope.

UTV Axle Warranty and Materials: What You're Paying For

UTV axle warranty and materials are the two things that separate a real upgrade from a repainted stock part. Material first: 4340 chromoly is the baseline for our race spec axles, and 300M is the step up. 300M is an aircraft-grade alloy, a reinforced version of 4340 with vanadium and higher silicon content for strength and heat resistance.

Warranty second. The Demon Xtreme Race Spec axles carry a 2-year limited warranty, which is a strong signal of how confident we are in the build.

Polaris RZR 1000 Demon Xtreme Heavy Duty Axle Race Spec 4340 →

That is what the price buys: better steel, a reinforced cage design, and a warranty that means something. SAE International standards for driveline materials set the benchmark for alloy grading if you want to compare specs in detail.

UTV CV Axle Replacement: Signs, Symptoms, and Install

UTV CV axle replacement is due when you notice these signs: a rhythmic clicking on tight turns, vibration under acceleration, grease sprayed inside the wheel arch, or a torn boot. Catch it at the click and you replace one axle. Ignore it and the joint can seize or the shaft can let go mid-trail.

The install is a driveway job for most riders:

1. Loosen the wheel lugs and lift the machine on stands
2. Remove the wheel and the axle nut
3. Separate the outer joint from the hub
4. Pop the inner joint out of the differential
5. Fit the new axle, torque the nut, and recheck boot seating

Expect a couple of hours for a first-timer. Torque specs matter, so use your model's service manual. Polaris owner resources and service information lists model-specific guidance.

Which Axle Should You Pick?

Pick by machine and by how hard you ride. Stock-travel RZR XP 1000 owners should take the 4340 Race Spec at $540.00. Lifted or long travel PRO XP builds need the Long Travel 4340. Turbo R and Maverick X3 owners running big power should go straight to the 300M versions at $632.00.

If you are not sure, tell us your model, year, and suspension setup. We will match the axle to your build rather than sell you the most expensive option.

Conclusion

The hard part of buying axles is not the purchase, it is trusting that the part will survive the trail. Slither Motorsports LLC builds for that exact worry, with 4340 chromoly and 300M race spec axles, a 2-year limited warranty, and fitment covering Polaris RZR and Can-Am Maverick X3 machines. Our customers tell us the axle upgrades have run with zero issues, and that is the standard we hold. Search our inventory and get the driveline your machine deserves.
