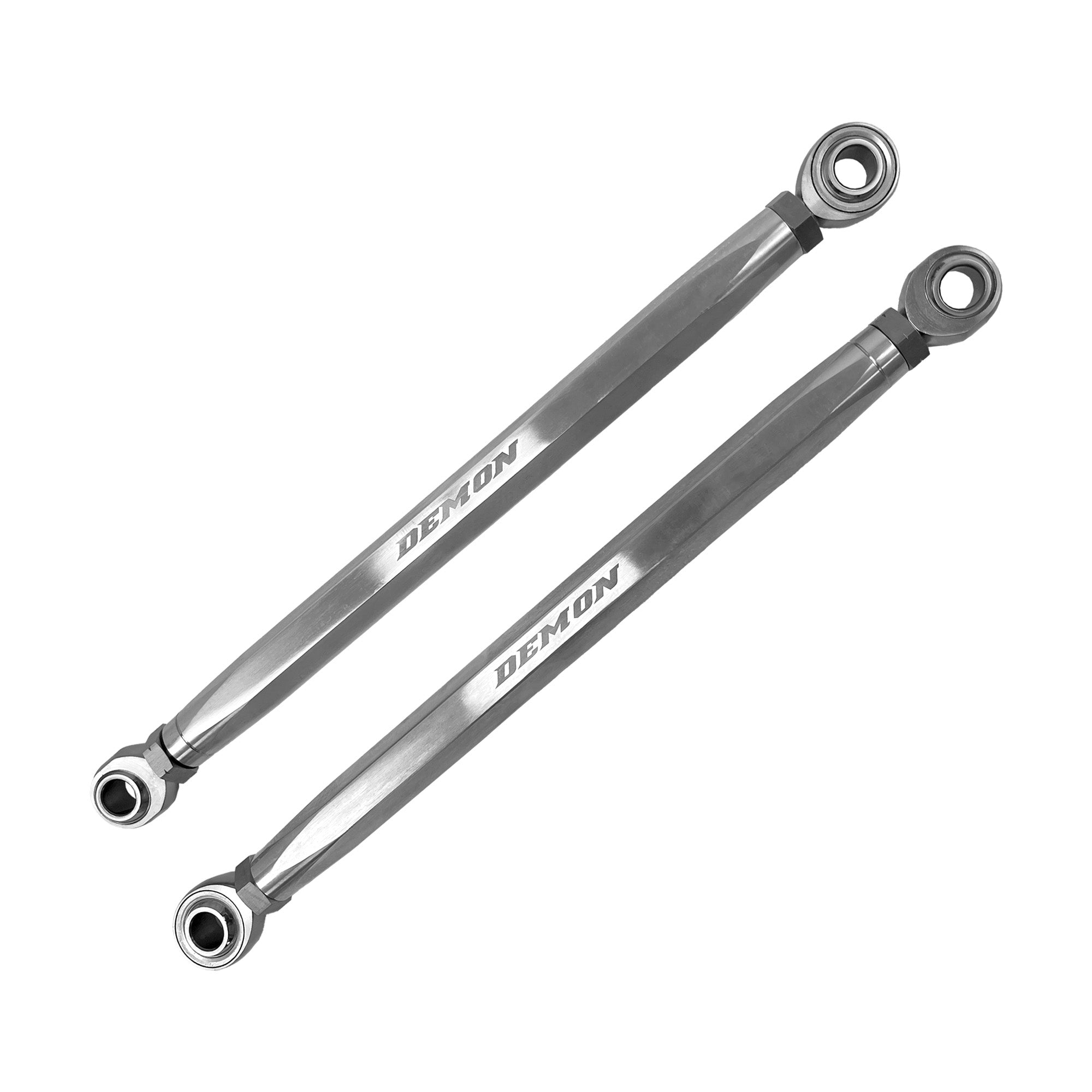

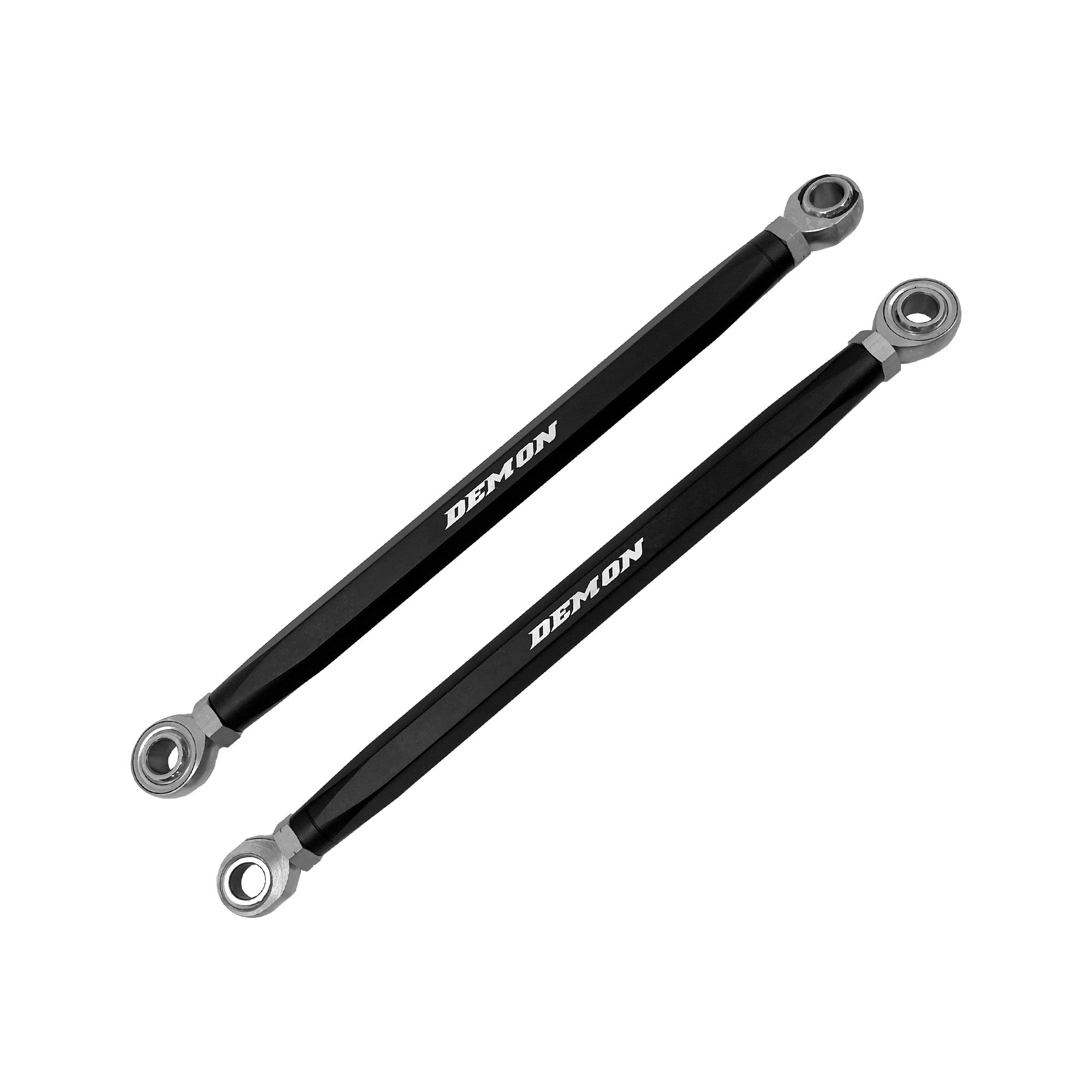

Can-Am Outlander 500 Demon Xtreme Heavy Duty Tie Rod Race Spec

Demon X-Treme Heavy Duty Race Spec Tie Rods – Ultimate Strength for ATV, UTV & Off-Road Performance

Take your off-road machine to the next level with Demon X-Treme Heavy Duty Race Spec Tie Rods, engineered for extreme strength, precision handling, and long-lasting durability. Designed for ATVs, UTVs, side-by-sides, and off-road race vehicles, these tie rods are the ultimate upgrade for high-performance builds that demand reliability under the harshest conditions.

Premium Aerospace-Grade Construction for Maximum Durability

• 7075 T6 Aircraft-Grade Billet Aluminum: CNC-machined for precision, our tie rods use 7075 aluminum, providing unmatched strength-to-weight ratio, superior fatigue resistance, and over 70% more strength than standard 6061 aluminum tie rods. Perfect for off-road, mud, rock crawling, and racing applications.
• Heavy-Duty Chromoly Steel Rod Ends: Chrome and zinc-plated rod ends deliver extreme strength and corrosion resistance, built to withstand mud, water, dust, and debris encountered on trails or race tracks.
• Maintenance-Free PTFE Lined Joints: Self-lubricating, high-performance joints paired with protective CR boots provide smooth operation and long-lasting durability without constant maintenance.

Adjustable Design for On-the-Fly Performance Tuning

• Opposite Thread Ends: Quickly adjust the toe angle of your front wheels on your ATV or UTV while sitting on its own weight. Fine-tune steering alignment for precise handling on trails, dunes, or racing circuits.
• Jam Nut Securing System: After adjustment, simply tighten jam nuts to lock settings in place, preventing unwanted shifts during aggressive off-road riding.

Advanced Ball & Heim Joints for Extreme Load Handling

• Inner Ball Stud Joint: Crafted from 4135 Chromoly Alloy Steel, featuring PTFE liners and protective CR boots for dust and liquid resistance.

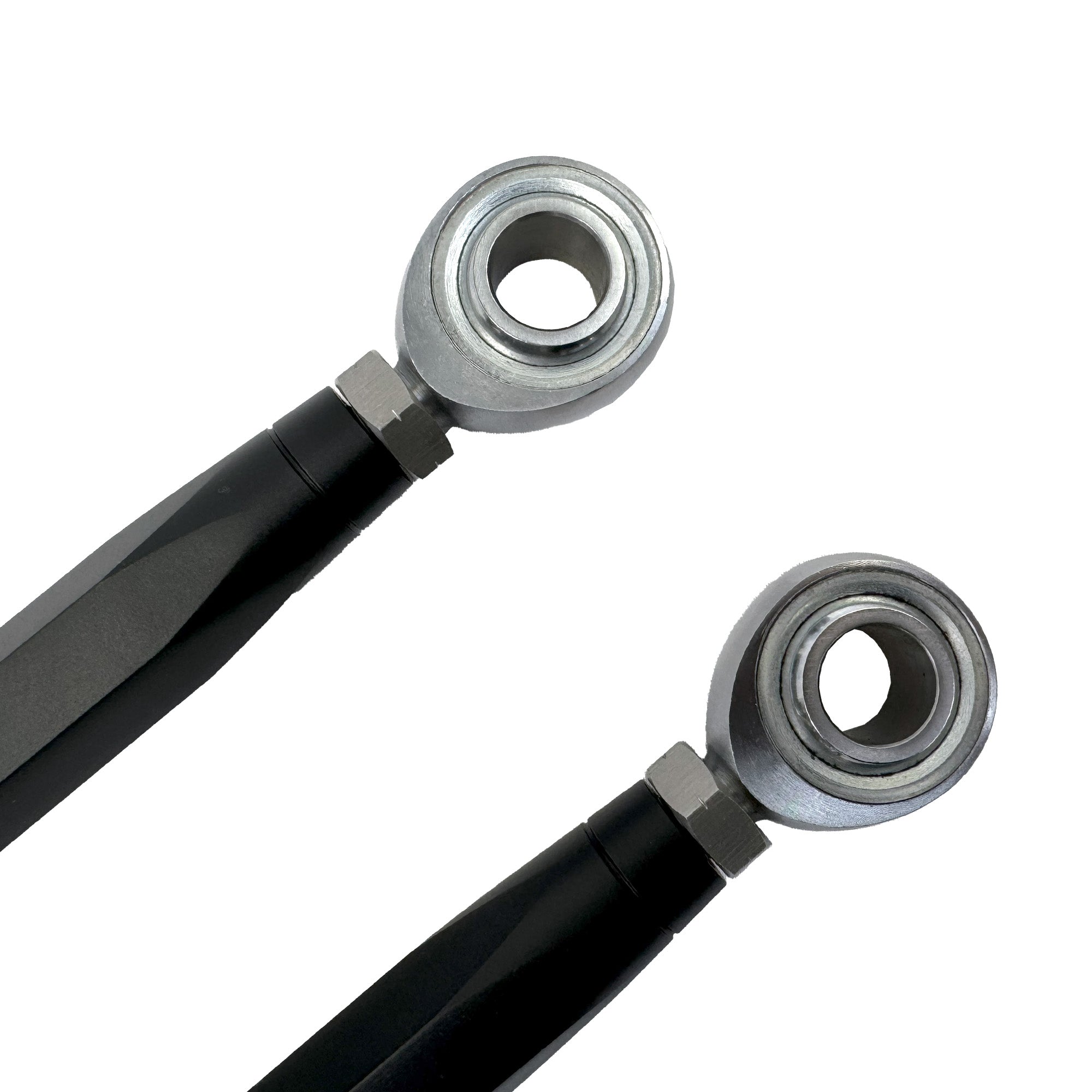

• Outboard Heim Joint: High-durability 3-piece design, hardened bearing steel, polished, and chrome-plated for extreme wear resistance. Radial static load rating 17,990 lbs.
• Inboard Heim Joint: Precision-engineered to fit OE pitman arm for perfect OEM-like installation and reliable steering. Radial static load rating 28,080 lbs.

Proven Strength Under Extreme Conditions

• Fully assembled tie rods withstand over 2,200 lbs in bend tests and rebound to their original shape without bending, denting, or damaging threads.
• Built to endure extreme off-road trails, rock crawling, mud bogging, desert racing, and high-performance racing conditions.
• Designed for heavy-duty suspension upgrades, performance steering kits, and ATV/UTV customization.

Complete Installation Kit Included:

• (2) Heavy Duty Tie Rods
• (4) Rod Ends with Jam Nuts
• Installation Hardware: Misalignment Bushings, Bolts, Nuts, Cotter Pins, Zip Ties
• User Manual

Why Upgrade to Demon X-Treme Heavy Duty Tie Rods?

• Extreme durability for ATV, UTV, and off-road racing
• High-performance, maintenance-free PTFE joints with CR boot protection
• Superior 7075 aluminum strength—over 70% stronger than competitor 6061 tie rods
• On-the-fly adjustable design for perfect front-end alignment
• Built for extreme mud, dirt, rock crawling, and racing environments

Upgrade your steering and suspension system with Demon X-Treme Heavy Duty Race Spec Tie Rods—engineered for the most demanding off-road, ATV, UTV, and powersports enthusiasts who settle for nothing less than extreme strength, reliability, and performance.
